NeoFM/FTP provides several optional subroutines that can be used by VisualNEO Win authors to override or customize many of its core features. There are two types of subroutines - connection-specific and generic. Connection-specific subroutines are used to respond to events that affect a specific connection or a connection's file browser. Generic subroutines are used to respond to events that involve more than one connection or file browser.


NOTE: Subroutines are considered an advanced VisualNEO Win feature, so inexperienced users should exercise caution before using them. For more information about subroutines, please consult your VisualNEO Win help file.


All of the subroutines described here are optional and can be implemented when needed or ignored when not needed. If NeoFM/FTP detects that a particular subroutine exists, it will execute it in favor of its normal built-in behavior. For example, normally when a file is about to be overwritten, NeoFM/FTP will display a dialog box* like the one below giving the user a chance to OK or cancel the action:



However, if your publication contains a subroutine called "FMFTP_ConfirmOverwrite", then NeoFM/FTP will execute that instead of displaying the dialog box. The subroutine could be used to display your own custom dialog box using VisualNEO Win's CustomWindow action or you could use some other method to determine whether a file should be overwritten. If you decide to use any of these custom subroutines or to disable confirmation dialogs, it is your responsibility to insure that important files are not overwritten, deleted or otherwise destroyed. Most Windows file actions cannot be undone.


*Most NeoFM/FTP actions, such as fmCopySelected, offer options to disable the display of confirmation dialogs like this one.


The different types of subroutines supported by NeoFM/FTP are described below:



Connection-Specific Subroutines

The descriptive labels (or names) used for connection-specific subroutines are a combination of the Connection ID, an underscore (_) followed by a special keyword. Below are a list of connection-specific subroutines supported by NeoFM/FTP. (Replace "ID" in the names below with your Connection ID.)


Subroutine

Name:

ID_SelectionChanged

Triggered By:

Any event that changes the number of selected items for a connection. This can be triggered by the user clicking an item in a file browser; changes to the current directory or any action that alters the selection count such as fmSelectAll, fmMoveSelected, fmDeleteSelected, etc.

Variables

Affected:

[ID.SelCount]

The number of selected items.

Example:

The following example enables or disables several Push Buttons based on the number of selected items in FileList1:


:FileList1_SelectionChanged

If "[FileList1.SelCount]" ">" "0"

  .One or more items is selected

  EnableObject "CopyBtn"

  EnableObject "MoveBtn"

  EnableObject "RenameBtn"

  EnableObject "RecycleBtn"

  EnableObject "DeleteBtn"

Else

  .Nothing is selected

  DisableObject "CopyBtn"

  DisableObject "MoveBtn"

  DisableObject "RenameBtn"

  DisableObject "RecycleBtn"

  DisableObject "DeleteBtn"

EndIf

Return


Subroutine

Name:

ID_DirectoryChanged

Triggered By:

Changes to the connection's current directory. This can be triggered by a user double clicking on a folder in a file browser or the fmChangeDir action.

Variables

Affected:

[ID.CurrentDir]

The new current directory.

[ID.TotalItems]

The total number of items in the new current directory.

[ID.SelCount]

The number of selected items.

Example:

The following example, updates a Simple Text object whenever the FileList1's current directory changes:


:FileList1_DirectoryChanged

SetObjectCaption "Text1" "[FileList1.CurrentDir]"

Return


Subroutine

Name:

ID_SortChanged

Triggered By:

Changing the connection's sort method by clicking on the list view's header.


Note: This subroutine is NOT triggered when the sort method is changed programmatically using the fmSetSortMethod action.

Variables

Affected:

[ID.SelCount]

The number of selected items.

Example:

The following example updates a combo box and radio button group to reflect the new sort settings:


:FileList1_SortChanged

fmGetSortMethod "[FMFTP.ActiveClient]" "[ComboBox1]" "[RadioGroup1]"

Return


Subroutine

Name:

ID_RightClick

Triggered By:

A right mouse button click on an item in the list view portion of a file browser.

Variables

Affected:

[FMFTP.EventType]

Will contain the keyword "RightClick".

[FMFTP.EventSourceFile]

The full name (including path) of the clicked item.

Example:

The following example displays the Windows properties dialog box for the clicked item:


:FileList1_RightClick

fmShowFilePropertiesDlg "[FMFTP.EventSourceFile]"

Return


Subroutine

Name:

ID_DoubleClick

Triggered By:

A double click on an item in the list view portion of a file browser.

Variables

Affected:

[FMFTP.EventType]

Will contain the keyword "DoubleClick".

[FMFTP.EventSourceFile]

The full name (including path) of the clicked item.

Example:

The following example loads the application associated with the double clicked file:


:FileList1_DoubleClick

Run "[FMFTP.EventSourceFile]" "" "Normal" "" ""

Return



Generic Subroutines

The descriptive labels (or names) used for generic subroutines are a combination of "FMFTP", an underscore (_) followed by a special keyword. Below are a list of generic subroutines supported by NeoFM/FTP.


Subroutine

Name:

FMFTP_FocusChanged

Triggered By:

Any event that causes a file browser to become active or inactive. This can occur when the user clicks on another file browser, navigates to a different page, etc. This subroutine can be used to enable or disable buttons or menu items that rely on the active file browser.

Variables

Affected:

[FMFTP.ActiveClient]

Will contain the Connection ID of the focused file browser. Otherwise, if no file browser has the input focus, this variable will be empty.

Example:

:FMFTP_FocusChanged

If "[FMFTP.ActiveClient]" ">" ""

  If "[[FMFTP.ActiveClient].SelCount]" ">" "0"

    .One or more items is selected

    EnableObject "CopyBtn"

    EnableObject "MoveBtn"

    EnableObject "RenameBtn"

    EnableObject "RecycleBtn"

    EnableObject "DeleteBtn"

  Else

    .Nothing is selected

    DisableObject "CopyBtn"

    DisableObject "MoveBtn"

    DisableObject "RenameBtn"

    DisableObject "RecycleBtn"

    DisableObject "DeleteBtn"

  EndIf

Else

  .No file browser is active

  DisableObject "CopyBtn"

  DisableObject "MoveBtn"

  DisableObject "RenameBtn"

  DisableObject "RecycleBtn"

  DisableObject "DeleteBtn"

EndIf

Return


Subroutine

Name:

FMFTP_Error

Triggered By:

Any NeoFM/FTP error.


Note: The fmShowErrors action can be used to disable the display of all NeoFM/FTP error messages. When fmShowErrors is off, the FMFTP_Error subroutine will not be executed.

Variables

Affected:

[FMFTP.Error]

A description of the error.

Example:

:FMFTP_Error

AlertBox "Whoops!" "The following error has occurred:||[FMFTP.Error]"

Return


Subroutine

Name:

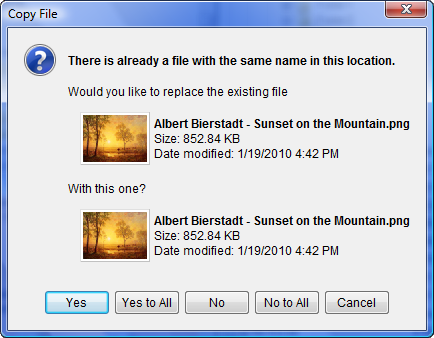

FMFTP_ConfirmOverwrite

Triggered By:

Any copy or move operation that will result in an existing file or folder being overwritten.


Note: Most NeoFM/FTP actions, such as fmCopySelected, offer options to disable both the default confirmation dialog and the FMFTP_ConfirmOverwrite action.

Variables

Affected:

[FMFTP.EventType]

Will contain either the keyword "ConfirmCopy" or "ConfirmMove".

[FMFTP.EventSourceID]

The Connection ID of the source file browser.

[FMFTP.EventDestID]

The Connection ID of the destination file browser.

[FMFTP.EventSourceFile]

The name of the source file that triggered the confirmation request.

[FMFTP.EventDestFile]

The name of the destination file that will be overwritten if the request is OK'd.

[FMFTP.EventResult]

At the start of the subroutine, this will be initially set to "Cancel" which will abort the operation. For a different result, you should set this variable to one of the following at some point in your subroutine:


Yes

The destination file that triggered the request will be overwritten.

YesToAll

The destination file that triggered the request will be overwritten and future confirmation requests will be automatically answered with "Yes".

No

Do not overwrite the destination file.

NoToAll

Do not overwrite any destination files.

Cancel

Abort the entire copy/move operation.

[FMFTP.EventResume]

During a download/copy confirmation, this variable can be set to "True" to allow Resume to be used if a copy of the file already exists in the destination folder. This variable will be ignored unless the "AllowResume" option has been enabled in the fmCopySelected, fmCopyFrom or fmSetDragDropOptions actions.

Example:

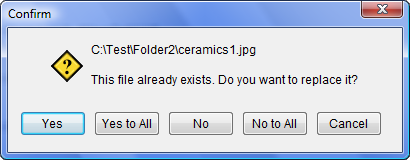

The following example, displays a VisualNEO Win message box asking the user if it's OK to overwrite an existing file:


:FMFTP_ConfirmOverwrite

MessageBox "Confirm" "[FMFTP.EventDestFile]||This file already exists. Do you want to replace it?" "Yes|Yes to All|No|No to All|Cancel" "[Result]"

If "[Result]" "=" "1"

  SetVar "[FMFTP.EventResult]" "Yes"

EndIf

If "[Result]" "=" "2"

  SetVar "[FMFTP.EventResult]" "YesToAll"

EndIf

If "[Result]" "=" "3"

  SetVar "[FMFTP.EventResult]" "No"

EndIf

If "[Result]" "=" "4"

  SetVar "[FMFTP.EventResult]" "NoToAll"

EndIf

Return



Subroutine

Name:

FMFTP_CopyConflict

Triggered By:

An invalid copy or move operation, such as attempting to copy a folder onto a file.

Variables

Affected:

[FMFTP.EventType]

Will contain the keyword "CopyConflict".

[FMFTP.EventSourceID]

The Connection ID of the source file browser.

[FMFTP.EventDestID]

The Connection ID of the destination file browser.

[FMFTP.EventSourceFile]

The name of the source file that triggered the conflict.

[FMFTP.EventDestFile]

The name of the destination file that triggered the conflict.

[FMFTP.EventMessage]

A description of the error.

[FMFTP.EventResult]

At the start of the subroutine, this will be initially set to "Cancel" which will abort the operation. For a different result, you should set this variable to one of the following at some point in your subroutine:


Skip

Skip the file that triggered the conflict and continue the rest of the copy/move operation.

Cancel

Abort the entire copy/move operation.

Example:

The following example, displays a VisualNEO Win message box alerting the user about a copy conflict:


:FMFTP_CopyConflict

MessageBox "Error" "[FMFTP.EventMessage]" "Skip|Cancel" "[Result]"

If "[Result]" "=" "1"

  SetVar "[FMFTP.EventResult]" "Skip"

EndIf

Return


Subroutine

Name:

FMFTP_DropFile

Triggered By:

Files being dragged and dropped onto a file browser. The destination is always a NeoFM/FTP-owned file browser. The source can be either another file browser or an external application.

Variables

Affected:

[FMFTP.EventType]

Will contain the keyword "FileDrop".

[FMFTP.EventSourceID]

If the source is another file browser, then this variable will contain the Connection ID of the source file browser. If the source is an external application, then this variable will be empty.

[FMFTP.EventDestID]

The Connection ID of the destination file browser.

[FMFTP.EventSourceFile]

A list of all files included in the drop separated by the global delimiter.

[FMFTP.EventDestFile]

The path where the dropped files will be copied or moved. You may change this variable within the subroutine to redirect the files to a new destination.

[FMFTP.EventResult]

At the start of the subroutine, this variable will be initially set to either "Copy" or "Move" depending on the source and the user's wishes. You can leave this variable as is or modify the result by setting this variable to one of the following at some point in your subroutine:


Copy

Dropped files will be copied.

Move

Dropped files will be moved.

Cancel

Abort the drop operation.

Example:

:FMFTP_DropFile

MessageBox "Confirm Drop" "Do you want to drop the following items:||[FMFTP.EventSourceFile]||Here:||[FMFTP.EventDestFile]" "Yes|No" "[Result]"

If "[Result]" "<>" "1"

  SetVar "[FMFTP.EventResult]" "Cancel"

EndIf

Return


The following subroutines are provided for VisualNEO Win authors who want to substitute their own custom progress bar in place of the one built-into NeoFM/FTP. Overriding the built-in progress bar can be fairly complicated, so we recommend that you take a look at a sample pub included with NeoFM/FTP called "Advanced File Manager" to see how these subroutines are actually used.


Subroutine

Name:

FMFTP_ProgressStart

Triggered By:

Any action that requires a progress bar. This is the first of the progress subroutines to be executed. If you want to display your own custom progress bar this is where it should be done.


IMPORTANT: If you're using a CustomWindow for your progress bar, you should not use the "Exclusive" option as it will interfere with the file processing being performed by NeoFM/FTP.

Variables

Affected:

[FMFTP.ProgressCaption]

The caption that would normally appear at the top of the progress dialog. You may use this in your custom progress routine or ignore it.

[FMFTP.ProgressMax]

The total number of items to be processed. You can use this variable and [FMFTP.ProgressCount] to provide feedback to the user about the status of the current operation.


Note: When working with folders it's not possible to know in advance the total number of items to be processed. When this happens, you may see the value of [FMFTP.ProgressMax] actually increase as the operation proceeds. If you are using this value to fashion your own progress bar, you will need to check this value in your FMFTP_ProgressUpdate subroutine and adjust your progress bar accordingly.

[FMFTP.ProgressCount]

The number of items that have been processed so far. This will be set to "0" (zero) before the FMFTP_ProgressStart subroutine is executed.

[FMFTP.ProgressAbort]

This will be set to "False" initially. You can cancel the current operation at any time by setting the value of this variable to "True".

Example:

:FMFTP_ProgressStart

.display our custom progress dialog

CustomWindow "[FMFTP.ProgressCaption]" "-1" "-1" "ProgressDialog" "ToolWindow+NoCloseBtn"

Return


Subroutine

Name:

FMFTP_ProgressUpdate

Triggered By:

Processing of items during any operation that requests a progress bar. This subroutine will be executed once for each item processed.

Variables

Affected:

[FMFTP.ProgressFile]

The name of the current item being processed.

[FMFTP.ProgressCount]

The number of items that have been processed so far.

[FMFTP.ProgressMax]

The total number of items to be processed. (See FMFTP_ProgressStart above for more information.)

[FMFTP.ProgressAbort]

You can cancel the current operation by setting this variable to "True".

Example:

:FMFTP_ProgressUpdate

.update our faux progress bar

GetObjectInfo "ProgressContainer" "Width" "[PBWidth]"

SizeObject "ProgressGraph" "Round([FMFTP.ProgressCount]*([PBWidth] / [FMFTP.ProgressMax]))" "-1"

Return


Subroutine

Name:

FMFTP_ProgressEnd

Triggered By:

The completion of the operation that requested the progress bar. This subroutine should always be paired with a matching FMFTP_ProgressStart subroutine. For example, if you displayed a custom window in FMFTP_ProgressStart, then you should close it here.

Variables

Affected:

None

Example:

:FMFTP_ProgressEnd

.close our custom progress dialog

CloseCustomWindow "ProgressDialog"

Return


Subroutine

Name:

FMFTP_FileProgressStart

Triggered By:

Copying a file. This subroutine can be used to provide an extra level of detail to your progress feedback by showing the size and bytes remaining when copying files. Must be used with FMFTP_ProgressStart.

Variables

Affected:

[FMFTP.ProgressFileSize]

The total size (in bytes) of the file about to be copied.

[FMFTP.ProgressFileBytesCopied]

The number of bytes copied so far.

Example:

:FMFTP_FileProgressStart

.initialize our faux file progress bar

SizeObject "FileProgressGraph" "0" "-1"

GetObjectInfo "FileProgressBar" "Width" "[FPBWidth]"

ShowObject "FileProgressBar" "None" "0"

Return


Subroutine

Name:

FMFTP_FileProgressUpdate

Triggered By:

Processing of data during a file copy. This subroutine can be executed several times during the copy depending on the size of the file. The version of Windows and available RAM also influence how many times this subroutine is executed.

Variables

Affected:

[FMFTP.ProgressFileBytesCopied]

The number of bytes copied so far.

[FMFTP.ProgressAbort]

You can cancel the file copy by setting this variable to "True".

Example:

:FMFTP_FileProgressUpdate

.update our faux file progress bar

SizeObject "FileProgressGraph" "Round([FMFTP.ProgressFileBytesCopied]*([FPBWidth] / [FMFTP.ProgressFileSize]))" "-1"

Return


Subroutine

Name:

FMFTP_FileProgressEnd

Triggered By:

The completion of the file copy. This subroutine should always be paired with a matching FMFTP_FileProgressStart subroutine.

Variables

Affected:

None

Example:

:FMFTP_FileProgressEnd

.hide our file progress bar

HideObject "FileProgressBar" "None" "0"

Return


Indicates variable can be modified. All other variables should be considered read-only.
